Chip machining

For the required shape of the workpiece Tamala system a.s. with the given dimensions and in the given degree of accuracy we perform:

Turning

Max. Average turning 1 450 mm, Length 4 000 mm
Max. height distance 1 000 mm
Max. Workpiece weight 7 000 kg

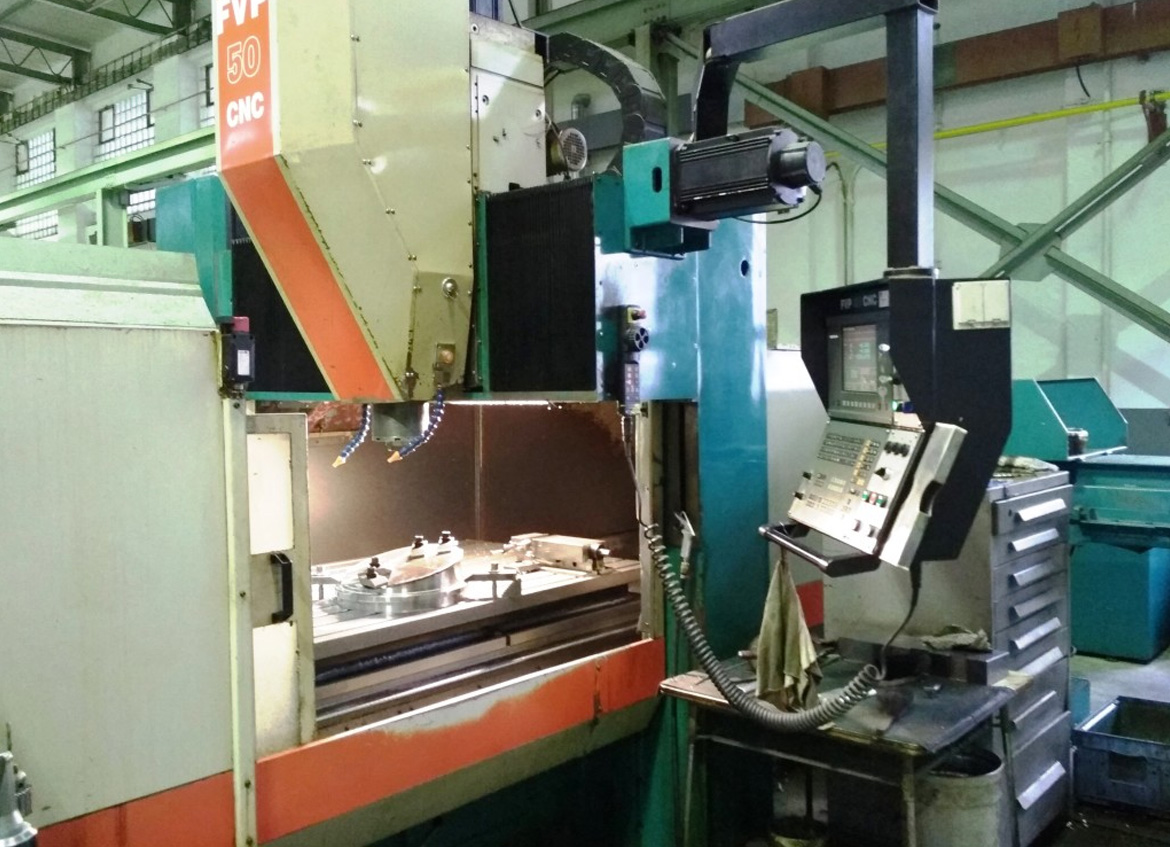

Milling

The travel in the x/y/z axis is 2 000/900/800 mm
Spindle to table distance 166-966 mm
Max. table load 3 000 kg

Drilling

Machining dimension max. ⌀ 1520 mm, 1400 x 1000 mm
Average drilling max. ⌀ 32 mm

Drilling

Average working spindle 130 mm
Work spindle face adjustment w/z axis is 2 000 /900 mm
Spindle to table distance x/y axis 3 200/2 300 mm
Clamping area 4 000 x 3 770 mm

Grinding

Max. Average 250 mm, Length 600 mm
Max. size 200×800 mm
